Component

Details

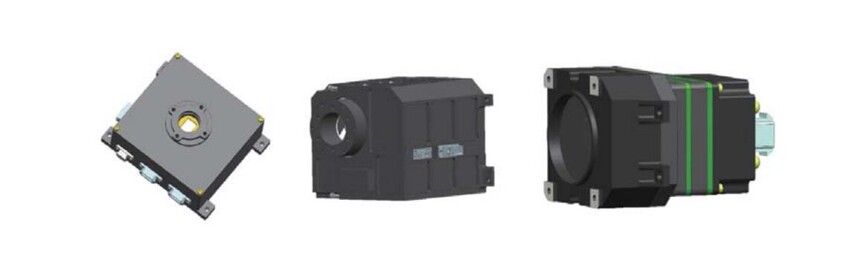

lnfrared focal plane

Product code	CG-DJ-IR-01	CG-DJ-IR-02	CG-DJ-lR-03
Imaging mode	Frame-based push-broom lmaging	Frame-based push-broom lmaging	Frame-based push-broom lmaging
Sensor type	Single lngaas sensor	Single hgcdte sensor	Single vox sensor
Pixel size	25μm	15μm	17μm
Single chip Sensor pixel scale	640×512	640×512	640×512
Spectral band	Shortwave lnfrared	Midwave lnfrared	Longwave lnfrared
Power consumption	≤20W	≤16W	≤1 .5W
Weight	≈1.40kg	≈1.75kg	≈0.09kg
Supply cycle	3 months	6 months	3 months
