Component

Details

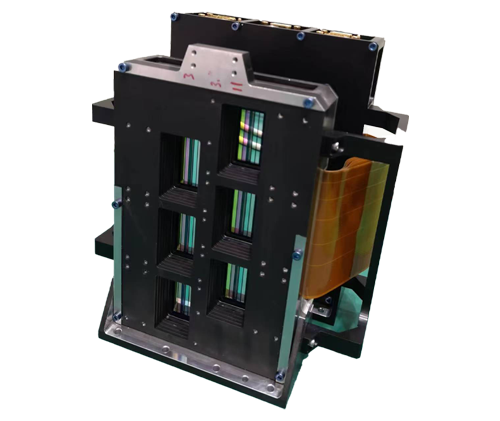

CMOS focal plane


Product code	CG-DJ-CM OS-3L-01	CG-DJ-CM OS-L-01	CG-DJ-CM OS-V-01	CG-DJ-CM OS-V-02	CG-DJ-CM OS-V-N	CG-DJ-CM OS-V-AI
Imaging mode	Push-broom Imaging	Push-broom Imaging	Video Imaging	Video Imaging	Low-light Imaging	Video Imaging
Sensor type	Three CMOS chips mechanically stitched	single CMOS chip sensor	single CMOS chip sensor	single CMOS chip sensor	single CMOS chip sensor	single CMOS chip sensor
Pixel size	4.25μm	5.5μm	5.5μm	5.5μm	4.25μm	4.25μm
Single chip sensor pixel scale	5056×2968	12000×5000	12000×5000	12000×5000	5056×2968	5056×2968
Spectral band	P/R/G/B/IR/ Red edge	20 spectral bands	R/G/B	R/G/B	R/G/B	IR
Power consumption	≤22W	≤15W	<9W	≤8.3W	≤10.5W	≤25W
Weight	1.5 kg	1kg	≤1kg	0.7kg	0.5kg	0.8kg
Supply cycle	4 months	3 months	6 months	8 months	3 months	3 months
