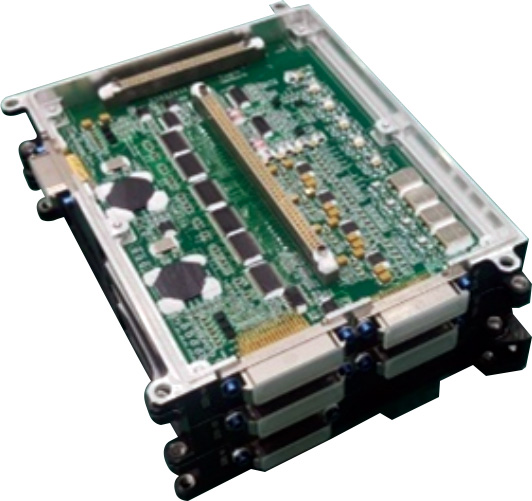

Power distribution and thermal control management unit

Product code	CG-DJ-PD-100	CG-DJ-PD-300
Envelope dimension	94mm×94mm×46mm	150mm×120mm×57mm
Weight	0.5kg	1.3kg
Power consumption	1W	8.5W (including DCDC static power consumption)
Power distribution	10 channel 12V/7 channel 5.2V	6 channel 28V/8 channel 12V/5 channel 5.2V
Driven by heater band	11 channel, maximum 2W per channel	15 channel, maximum 10W per channel
Temperature/analog Input data collecting	20 channel, 12-bit collecting	34 channel, 12-bit collecting
SADA driving	2 channel	\
Fuse control	2 channel, current 4~6A	2 channel, current 5~6A
Supply cycle	4 months	4 months
