Using advanced robotic CNC processing as the primary method, combined with ion-beam, polishing, and milling machines, it can achieve customized and batch production of large-aperture, high-precision, asymmetric- spherical surface and aspherical microcrystalline reflective mirrors.
Reflective mirror diameter range | Φ50mm-600mm |
Reflective mirror surface shape | RMS: Better than 1/60 λ ( λ = 632.8 nm) |
Surface roughness | <2nm |
Supply cycle | 1 - 2.5 months |
Reflective mirrordiameter (D) | ∅440mm |
Surface feature | Coaxial aspherical surface |

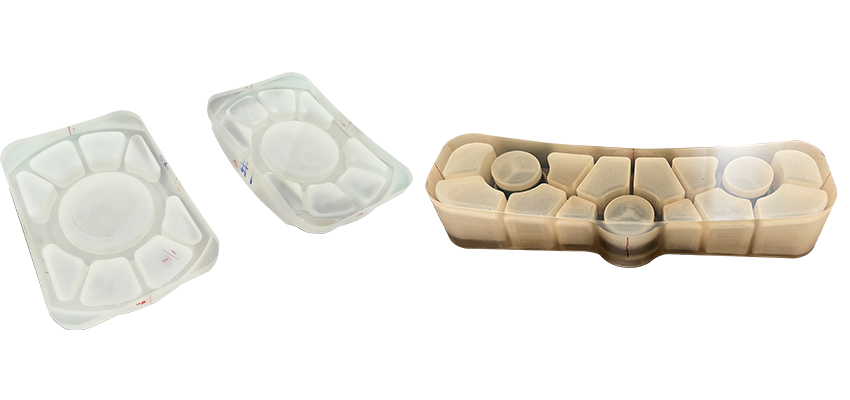

Lightweight form | Counterbore |
Supply cycle | 2.5 months |
Reflective mirror diameter (D) | ∅116mm |
Surface feature | Convex aspherical surface |
Lightweight form | Ribbed + asymmetric shape |
Supply cycle | 1.25 months |
